Intelligent Liner -Tension Differential Monitoring System

The intelligent pad-wire rope tension difference monitoring system can reflect the dynamic tension difference of the wire rope, the real-time data of the tension difference value and the tension change trend, and is equipped with the tension out-of-tolerance alarm function.

Key words:

Intelligent Liner -Tension Differential Monitoring System

Classification:

Products

Product Consulting:

+86 0 379-65196608

Message

recommend

Detailed introduction

G40 series intelligent liner developed by our company-wire rope tension difference monitoring system;

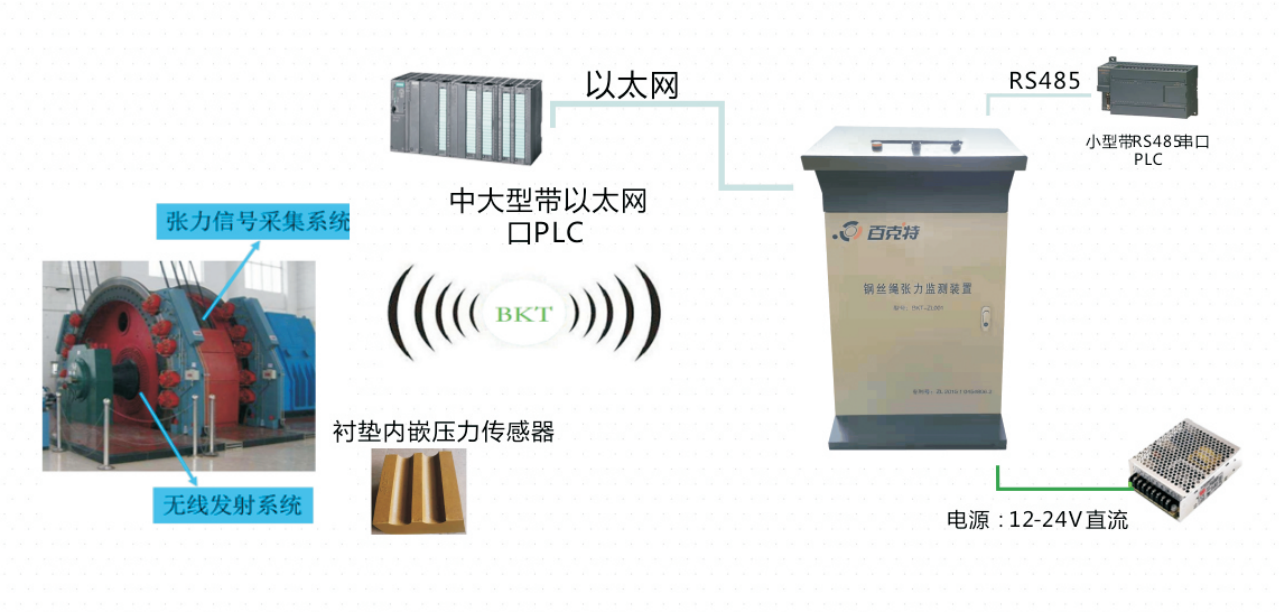

We add high-precision micro sensors in the gasket manufacturing process. When the steel wire rope contacts the gasket with sensors, signals will be sent out. Each hoist is equipped with a corresponding number of gasket sensor modules according to the number of steel wires. The sensors collect data at a speed of 6000 points per second. Each group of data is analyzed and compared through the processing system. If the monitoring value exceeds the preset range, an alarm will be given immediately to achieve the monitoring purpose of dynamic tension difference of steel wire rope.

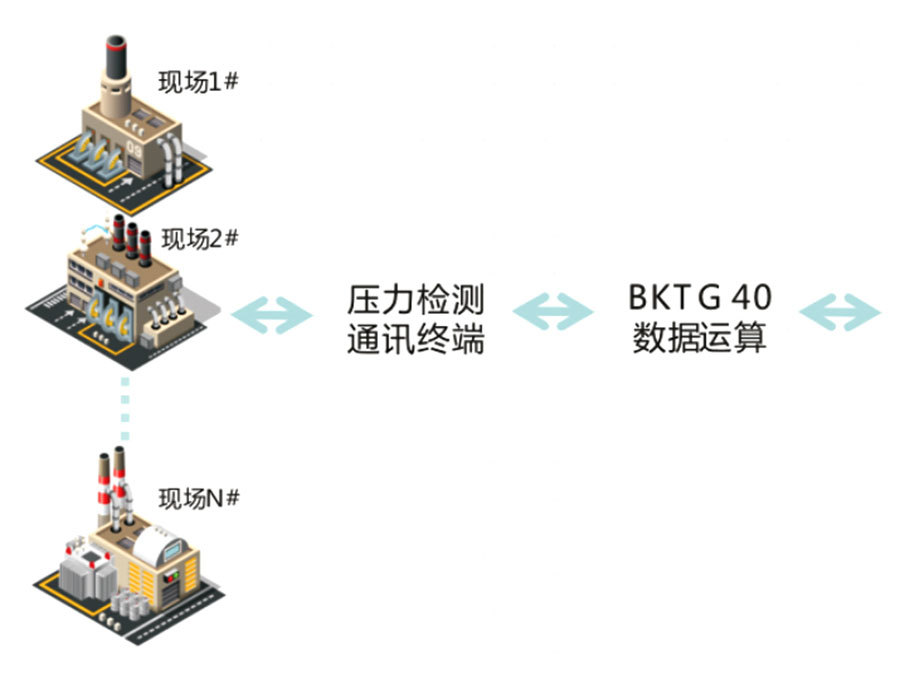

The system is equipped with remote communication functions: remote download and debugging, remote monitoring of configuration software, remote monitoring of mobile phone APP web page, and SMS alarm function, which realizes the intelligent mine management requirements.

Project	Indicators
Total power	300w
Transmit power	110w
Received power	100w
Supply voltage	Transmitting DC 24v, receiving AC 220v
On-site charging	AC 220v,1A,50Hz
Sensor accuracy	±5N
system reaction rate	20 ms/time
wireless transmission distance	800m
Built-in lithium battery life time	≥ 50h (longer battery life can be selected according to customer requirements)
Monitoring mode	SMS, APP, webpage, OPC configuration, upper computer
