Product Consulting:

Color			transparent green
evaporation point		DIN EN 22719/1.	68°C
Status			Liquid
After solvent evaporation	Status		elastic solid
	Oil Dropping Point	ISO2176	> 90 ℃
	degree of permeability	DIN51801/2；ISO2137	50-70 1/10mm
	evaporation point	DIN51584	> 200 ℃
	breaking point	DIN52012	-30℃

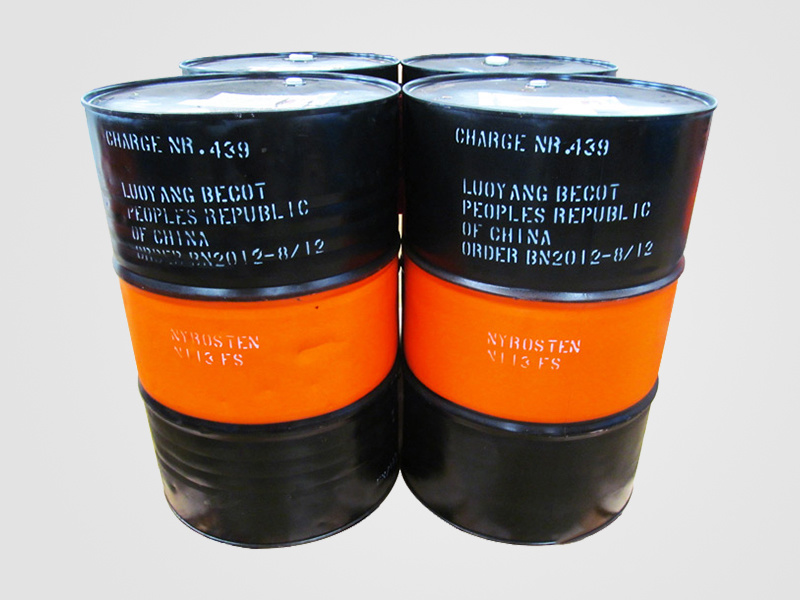

NYROSTEN N113 FS post corrosion inhibiting compound/lubricating oil

Scope of application:A heavily tensioned wire rope. Such as: transport rope, pendant rope, assembly rope, crane rope, cable, sling rope, digging rope, drilling rope, shipping rope, lock rope.

The friction coefficient of the hoist is formed by the dual friction pair of the wire rope and the liner in the condition of the grease as the medium, so the friction coefficient of the hoist is determined by the joint action of the liner, the wire rope and the grease. In Europe, the German BECORIT company's K25 liner, WDI company's wire rope and NYROSTEN company's N113 grease these three products long-term use, can ensure that the wire rope and friction liner friction coefficient of more than 0.25, so as to better ensure the safe operation of the hoist and the stability of the overall performance. Therefore, the use of special anti-corrosion grease for wire rope is very important for the comprehensive performance of wire rope and friction liner.

Advantages of NYROSTEN N113 FS wire rope anti-corrosion lubricating oil

(1) High performance

German NYROSTEN company is the world's steel wire rope grease production enterprises, the German DIN21258 standard is determined by reference to the performance indicators of N113. Shaft wire rope manufacturers in the world, such as BRIDON in the UK and DRAKO in Germany, use NYROSTEN N113 grease when producing wire ropes. N113fs wire rope grease dripping point and penetration is more than double that of ordinary grease, so as to ensure that it is not easy to spray oil during the coating process to ensure good utilization rate. Not only can maintain the friction coefficient at the same time can ensure the wire rope friction coefficient.

(2) Easy operation

The form of N113 FS is liquid, and the wire rope can be sprayed at room temperature without heating. Place the steel wire rope at the center of the oil injection ring so that the plane of the oil ring is perpendicular to the steel wire rope. The wire rope runs at a speed of 4 to 6 m/s. Spraying is required to be carried out in sections, and 2 wire ropes can be sprayed at a time. For a 1000-meter-deep mine, it only takes about 4 to 5 minutes to break the spraying time of 2 wire ropes. After about 2 to 3 hours after the N113 FS grease solvent volatilizes, the grease forms a layer of uniform oil film on the surface of the wire rope to achieve the purpose of protecting the wire rope.

(3) Use effect

In 2006, we carried out a spraying test on the steel wire rope in the North District of Zhangji Coal Mine of Huainan Mining Group. Due to the high friction coefficient, good adhesion and permeability of N113 FS grease, it not only protects the steel wire rope but also ensures the safe operation of the hoist. The fuel injection operation is simple, the production time is short, by the use of units welcome. So that the national "coal safety regulations" on the wire rope monthly oiling can be implemented.

Why should the steel wire rope be anticorrosive in the later period?

According to the provisions of Article 411 of the National Coal Safety Regulations: "The wire rope in use shall be oiled at least once a month according to the conditions of the shaft and the corrosion".

1. Reduce the friction resistance and wear of the steel wire rope during different operation processes, and use anti-corrosion grease to lubricate the steel wire rope, so that the steel wire in the steel wire rope is evenly stressed and the bending performance of the steel wire is improved.

2. Reduce the corrosion of the wire rope and the core fiber by negative factors such as rain, ice and snow, CO2, and bacteria in the working environment of the wire rope, so as to improve the performance and service life of the wire rope.

3. The factors of low oil drop point and weak adhesion strength lead to the loss or fall of wire rope grease in a short period of time in the early stage of use, and can not play a protective role, so it is necessary for the later anti-corrosion.

4. The later anti-corrosion of the steel wire rope plays a role in maintaining the stability of the friction coefficient, which provides a strong guarantee for the stability of the comprehensive performance of the steel wire rope and the friction liner.

5. Good anti-corrosion grease in the later period can effectively prevent the fling of hemp core grease.

In the later anti-corrosion process of the wire rope, the following points must be considered:

The choice of anti-corrosion grease in the later period should see whether its various performance indicators meet the world's authoritative German DIN21258 standards.

2. The selection of anti-corrosion grease in the later period should avoid inconsistent with the basic grease, otherwise the anti-corrosion effect will not be achieved.

3, the late anti-corrosion grease should be able to carry out at room temperature.
